Industrivaskemaskin - Høytsentrifugerende

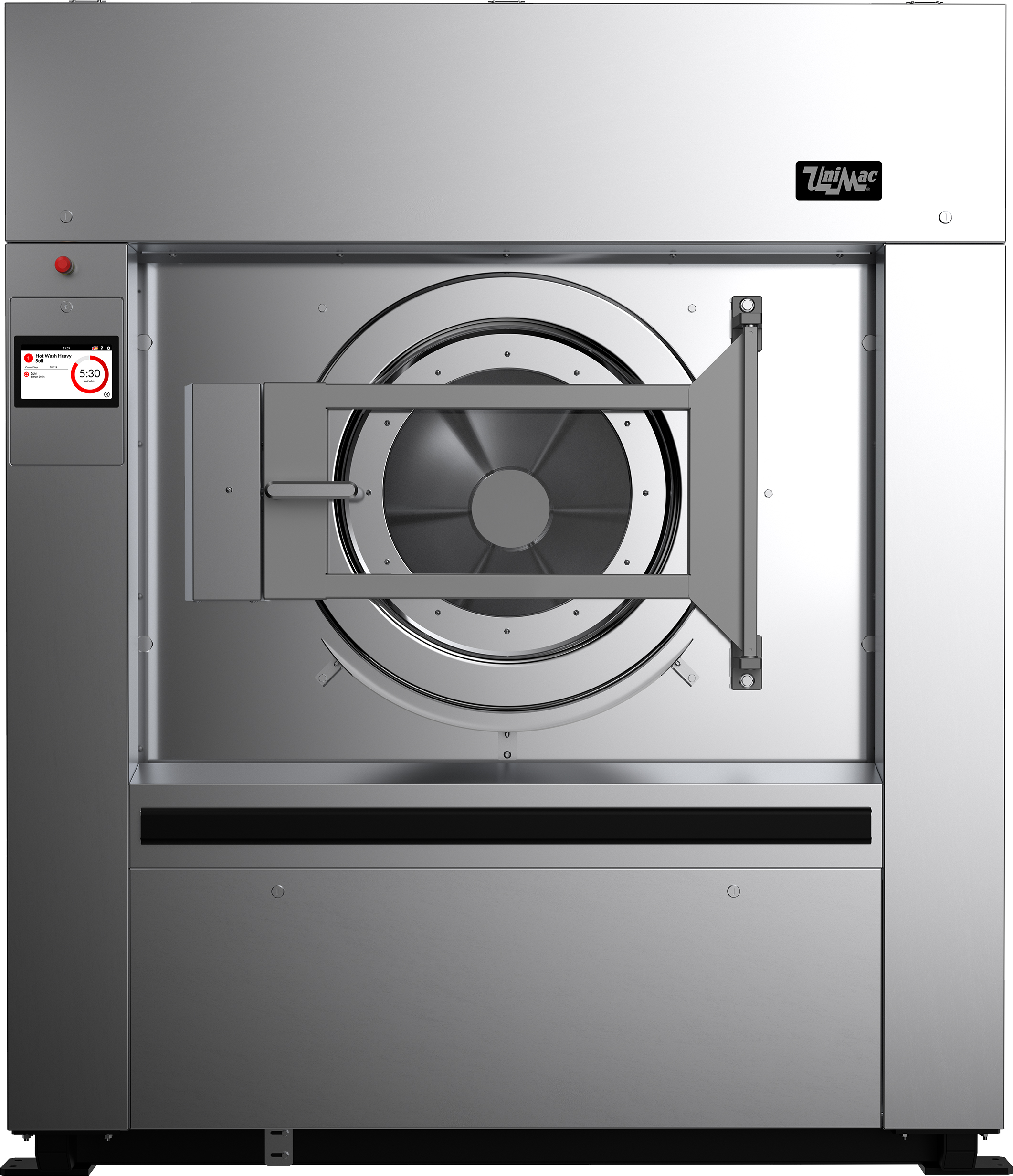

Industrivaskemaskin – Høytsentrifugerende

Standard
• Brukervennlig betjeningspanel
• PROform Control
– Mikroprosessor med 99 programmerbare vaskeprogrammer
• Topp, front og sidepaneler i rustfritt stål
• Patentert såpekopp med 5 avtagbare rom
• Enkel tilgang til alle viktige deler
• Stor dør for enkel håndtering av vasketøy
-UY800, UY1000 Ø 530 mm, UY1200 Ø 650 mm
• Standard tilkobling for flytende såpe
• Bumper / støtfanger (frontbeskyttelse)
• Kan monteres på alle typer gulv
• 2 store avløpsventiler Ø 103 mm

Legg til tilbudforespørsel
TYPE UY800 UY1000 UY1200
INNERDRUM
Capacity (1:10) kg/lb 80/180 100/230 120/275
Volume l 807 1003 1180
Diameter mm 1110 1200 1300
MOTOR
Frequency controlled Standard Standard Standard
DRUM SPEED
Wash rpm 36 33 32
Extraction rpm 750 720 695
G-Factor 350 350 350
PROGRAMMER
PROform Standard Standard Standard
CABINET
Stainless steel Standard Standard Standard
DRUM
Stainless steel Standard Standard Standard
HEATING
Electrical (standard) kW 67.5/70 – –
Steam high pressure bar 3-8 3-8 3-8
CONNECTION
Electrical kW 3×380-480V 50/60Hz 3×208-240V 50/60Hz 3×208-240V 50/60Hz
Water inlet inch 3×1 1/2″ 3×1 1/2″ 3×1 1/2″
Steam inlet inch 1″ 1″ 1″
Compressed air inlet Ø mm 8 8 8
Drain mm 2×103 2×103 2×103
DIMENSIONS
HxWxD mm 1985x1495x1940 2060x1790x2005 2085x1855x2085
TRANSPORT DATA
Gross weight kg 2830 3410 3710
Net weight kg 2640 3170 3480
Volume (packed) m³ 7.25 9.29 10.16
Crate packing HxWxD mm 2200x1690x1950 2345x1865x2125 2340x2000x2170

• Freestanding, high spin
• Stainless steel cabinet (AISI 304)
• Stainless steel drum and tub
• PROform – fully programmable microprocessor
• Extra large door opening (UY800, UY1000 Ø 530 mm,
UY1200 Ø 650 mm)
• Two large drain valves (Ø 103 mm)
• Easy access to all parts
• Standard liquid soap connections
• Frequency controlled motor
• Perforated lifting ribs: more mechanical action,
lower water consumption
• Air operated water inlet
• Ecological washing programmes
– significantly reduces water and electricity consumption
• Patented soap dispenser with 5 removable
compartments

• Liquid soap pumps
• PROform Assist traceability software and networking
system
• Forward and backward tilting is available. Tilting of the
machine is done by external platform.
